K315W
No. 50004
Cooling unit K315W is designed for cooling of MIG/MAG and TIG welding torches in heavy-duty working.
| Tensión de alimentación 50/60 Hz | 230 V ±10 % |
| Protección lenta | T 6,3 A |
| Cable de alimentacion | 3x 2,5 mm², longitud 2,5 m |
| Potencia de refrigeración | 850 W |
| Presión máxima | 0,4 kPa |
| Connection of cooling liquid outlet | DN5 |
| Contenido del recipiente de refrigerante | 3 l |
| Contenido de refrigerante en la máquina | 3,6 l |
| Rango de temperatura de almacenamiento | desde -30 °C hasta +55 °C (sin liquido) |
| Rango de temperatura de funcionamiento | desde -10 °C hasta +40 °C (can be regulated by ratio between water and ethylenglycol) |
| Clase de protección | IP21 |
| Dimensiones | 449 x 334 x 224 mm |
K5150W
No. 51133
Cooling unit K5150W is designed for cooling of MIG/MAG and TIG welding torches in heavy-duty working. It is suitable for use in transport cart K7100.
| Tensión de alimentación 50/60 Hz | 230 V ±10 % |
| Protección lenta | T 6,3 A |
| Cable de alimentacion | 3x 2,5 mm², longitud 2,5 m |
| Input | 300 W |
| Potencia de refrigeración | 850 W |
| Presión máxima | 0,4 kPa |
| Connection of cooling liquid outlet | DN5 |
| Contenido del recipiente de refrigerante | 3 l |
| Contenido de refrigerante en la máquina | 3,6 l |
| Rango de temperatura de almacenamiento | desde -30 °C hasta +55 °C (sin liquido) |
| Rango de temperatura de funcionamiento | desde -10 °C hasta +40 °C (can be regulated by ratio between water and ethylenglycol) |
| Clase de protección | IP21 |
| Dimensiones | 690 x 270 x 235 mm |
| Peso (el líquido incluso) | 18.6 kg |
F250W
No. 51321
Cooling unit F250W is especially designed as accessory for machine FĒNIX 250 ACDC for cooling of welding torch in heavy-duty working . It is suitable for use in transport cart FĒNIX.
| Tensión de alimentación 50/60 Hz | 230 V ±10 % |
| Protección lenta | T 6,3 A |
| Cable de alimentacion | 3x 2,5 mm², longitud 2,5 m |
| Input | 300 W |
| Potencia de refrigeración | 540 W |
| Presión máxima | 0,32 MPa |
| Connection of cooling liquid outlet | DN5 |
| Rango de temperatura de almacenamiento | desde -30 °C hasta +55 °C (sin liquido) |
| Rango de temperatura de funcionamiento | desde -10 °C hasta +40 °C (can be regulated by ratio between water and ethylenglycol) |
| Clase de protección | IP21 |
| Dimensiones | 250 x 200 x 180 mm |
| Peso (incluyendo líquido) | 10 kg |
Fuentes del calentamiento
No. 51036
The source is designed to power the heatreducing valve for welding machines which do not have this source built-in. It is suitable for installation in transport cart K7101.

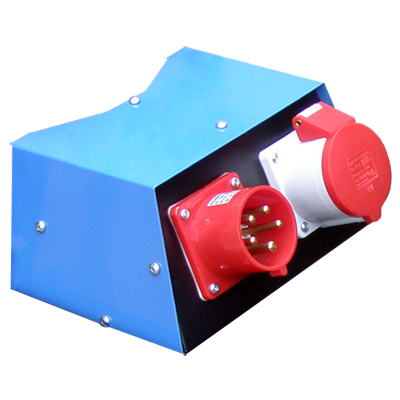

Fuentes del calentamiento y centralita K7301
No. 51138
The source is designed to power the heatreducing valve for welding machines which do not have this source built-in. It is suitable for installation in transport cart K7100. Source is designed as a transit for supply welding machine of TN-C and also is equipped with a 230 V socket or connection of the liquid cooling system and terminal 24 V AC / 42 V AC power for heating the reducing valve. The source is equipped with a main cam switch which serves to disconnect the whole device from the network and a switch for disconnecting the toggle separate outlet for heating the valve.
| Input voltage | 3x 400 V |
| Input supply current | 32 A |
| Output voltage I | 3x 400 V |
| Output supply current I | 32 A |
| Output voltage II | 1x 230 V |
| Output supply current II | 1,8 A |
| Output voltage III | 24 V or 42 V |
| Output supply current III | 4 A or 2,3 A |
| Protection | IP 21 |
